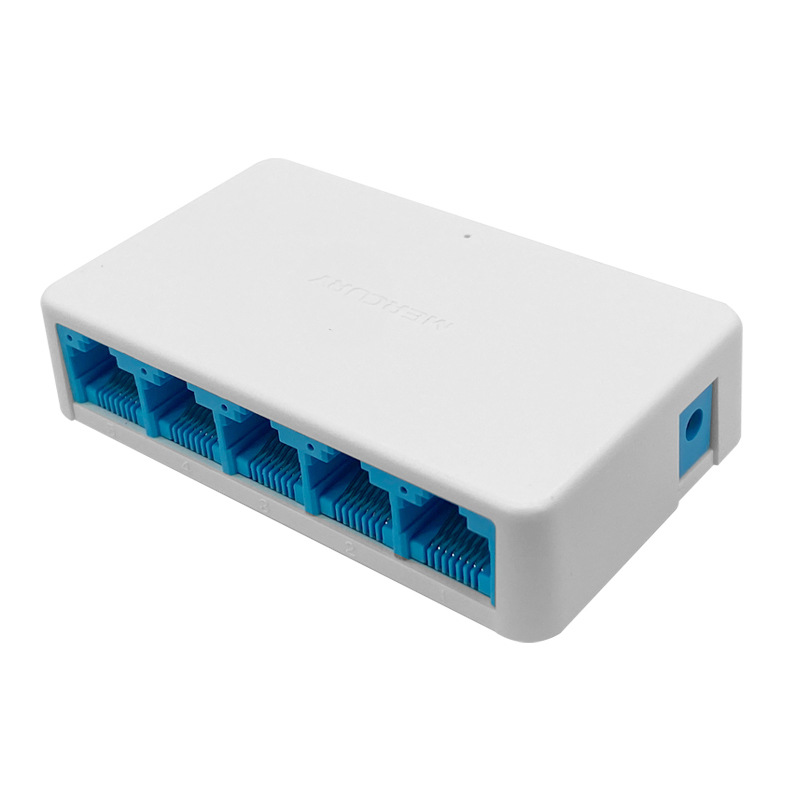

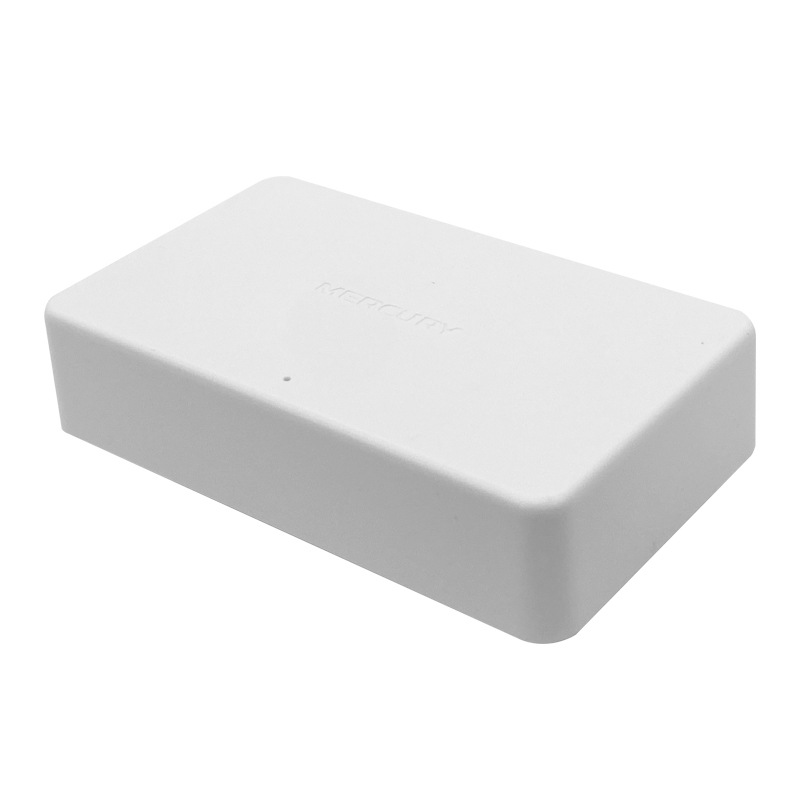

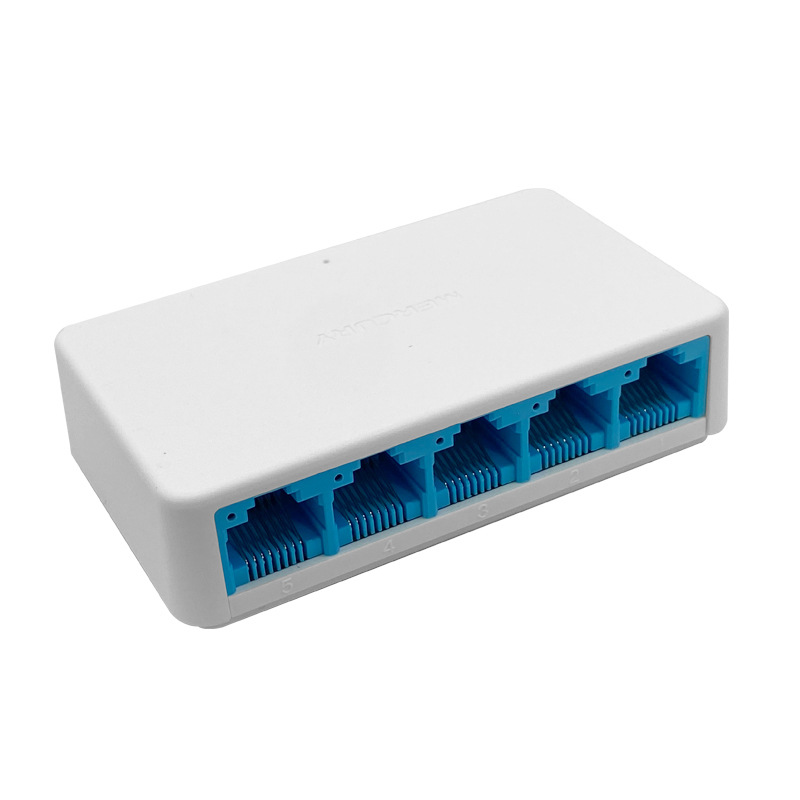

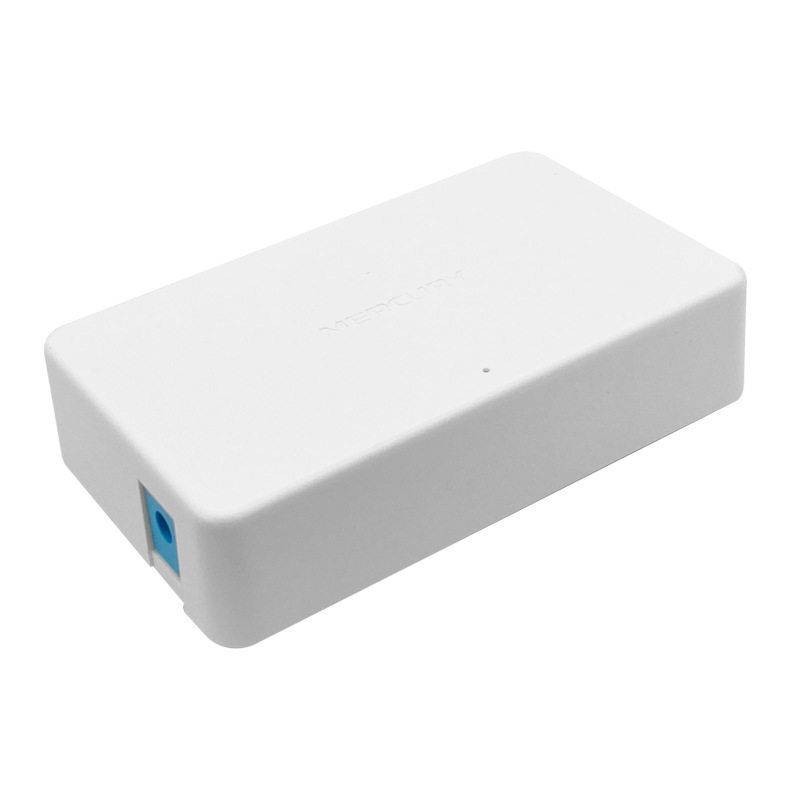

5-port TP SG105C Monitoring 5-port Full Gigabit Ethernet Network Splitter TP Switch

Product Parameter:

1.5-port gigabit switch
SG105C:

1.1 5 Gigabit RJ45 ports
1.2 MAC address self-learning
1.3 Desktop plastic shell design
1.4 Mini size design
1.5 Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
1.6 Flow control method: IEEE 802.3x standard is used for full duplex, and 1.7 Backpressure standard is used for half duplex
1.8 Storage forwarding architecture
1.9 5 10/100/1000M adaptive RJ45 ports, supporting automatic port flipping (Auto MDI/MDIX)
1.10 All 5 ports support 10M full/half duplex, 100M full/half duplex, and 1000M full duplex
1.11 UTP port supports automatic negotiation function, automatically adjusting transmission mode and transmission rate
Support MAC address self-learning
1.12 Dynamic LED indicator light, providing simple working status prompts and troubleshooting
External power supply, desktop plastic shell structure design
1.13 Mini size design, easy to fit into information box

2.
Network standards:

IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab

agreement:

CSMA/CD

Port:

5 10/100/1000M adaptive network ports

Supported network cable types:

10Base-T: Category 3 or above UTP

100Base TX: Category 5 UTP

1000Base-T: Category 5 or above UTP

indicator light:

Power supply and status indicator lights

Dimensions (L x W x H):

82mm x 49mm x21mm
Exchange method:

Store and Forward, line speed filtering, and forwarding

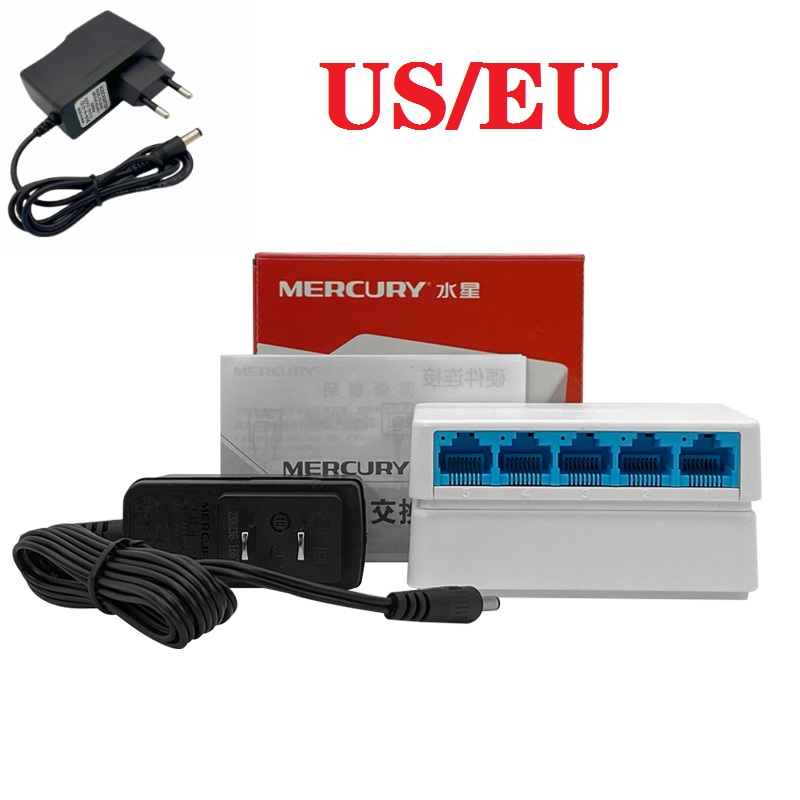

Power Supply:

External power adapter

Filtering and forwarding rate:

10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Usage environment:

Working temperature: 0 ℃ to 40 ℃

Storage temperature: -40 ℃ to 70 ℃

Working humidity: 10% to 90% RH, non condensing

Storage humidity: 5% to 90% RH, non condensing
